Showing 33–48 of 124 results
Measurement: Approximately 14-1/2″ x 24″
Material: .135″ Polycarbonate ABS
Finish: Black, Hair cell outward side, Smooth underside
Includes: (2) 24″ Deflector panel, (12) 10-32 x 3/8″ Truss Screws

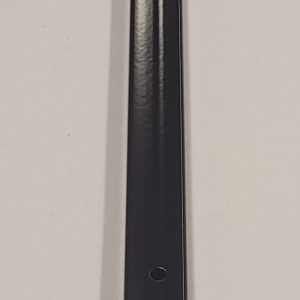

Measurement: Approximately 1″ x 1-1/2″ x 66-1/2″
Material: Standard Steel Rectangle Tubing
Finish: Bengal Black Powder Coat paint
Includes: (1) SM72 Tow Bar Tube
Measurement: Approximately 4″ x 72″
Material: 1/4″ Standard Steel, 1/2″ Standard Steel, 10 GA Standard Steel
Finish: 300Hr Salt Spray Yellow Zinc with Sealant
Includes: (1) 72″ SNO-RAZOR Cutter Assembly

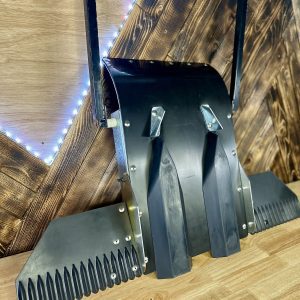

Measurement: Approximately 14-1/2″ x 36″
Material: .135″ Polycarbonate ABS
Finish: Black, Hair cell outward side, Smooth underside
Includes: (2) 36″ Deflector panel, (16) 10-32 x 3/8″ Truss Screws
Designed to shear (approximately 700 ft-lbs) at the receiver rather than causing extreme damage to the groomer if it is caught on an immovable object. Wire secures the pin from bouncing out when properly engaged. Pin meets SAE J429 specifications with a zinc plating to protect from rusting due to salt spray.
Contains (3) Wire Lock Pins
ATV 3/4″ Universal Hitch is made of 3/16″ Carbon Steel and finished with a durable Bengal Black powder coated paint. The ATV 3/4″ includes a round hole to place a 3/4″ Bolt or Ball Hitch through to attach to the receiver of your ATV (with Tracks recommended) to easily attach one of our three Pin Couplers. The ATV 3/4″ Universal Hitch includes a 5/16″ x 3-1/2″ Clevis Pin enabling 180 degree vertical movement. Vertical movement of the ATV Hitch combined with the horizontal movement along the 3/8″ Orange Handle Detent Pin (Sold Separately) offers a smooth pull even over uneven snow pack allowing the snow grooming chassis to remain flat giving you a more even snow packed trail.
CUSTOM 20″ – STEEL SNOW GROOMER
Build YOUR perfect 20″ groomer with the options and accessories below!
*The SNO-BLASTER is only available with the LOPPET 60 Drawbars.
CUSTOM 2024 SNO-MASTER® – STEEL SNOW GROOMER
Build YOUR perfect SNO-MASTER® groomer with the options and accessories below!
**ALL SNO-MASTERS WILL SHIP WITH THE NEW 2024 V2.0 TOWBARS.
Measurement: Approximately 9-1/2″ x 4″
Material: 10 GA Standard Steel
Finish: Safety Yellow Powder Coat paint
Includes: (1) Left DeTRAKOR Bracket, (1) Right DeTRAKOR Bracket, (4) 1/4-20 x 3/4″ Stainless Steel Hex Bolt, (4) 1/4-20 Stainless Steel Nylock Nuts

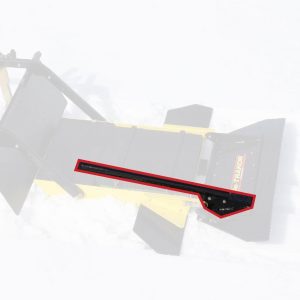

Measurement: Approximately 24″ x 4″ x 1″ (Round Tube)
Material: 1″ Standard Steel Tube, 7 GA Standard Steel plate, Plastic Vinyl Grip
Finish: Bengal Black Powder Coat paint
Includes (1) Handle w/ Vinyl grip
Measurement: Approximately 1-1/4″ x 4-1/4″
Material: 7 GA Standard Steel, Zinc plated locking pin
Finish: Bengal Black Powder Coat paint
Material: 11 GA Standard Steel
Measurement: Approximately 24″ x 9-1/4″
Finish: Bengal Black Powder Coat paint
Includes: (1) Pan, (6) 10-32 x 3/4″ Stainless Steel Truss Head Screws, (9) #66 Pop Rivets
