72" wide trail with wings that can make it 96" wide trail.
NORDIC SM 72®
The SNO-MASTER 72 is the SNO-MASTER 48’s big brother; it shares many of the same components. The SM72 drawbars are made with taller, stronger tubing and its SNO-RAZOR uses a wider blade, but they both use the same snow combs, covers, tracking runners etc. Like it’s little brother, the SNO-MASTER 72 loves to level a trail.
Click below for NORDIC SM 72 with SNO-RAZOR and Single Side Towbar
From powder to slush and every type of snow in between, the SNO-MASTER 72 does it all. It makes short work of large trail systems, operating in the 12-15 mph (20-25kmh) range, leaving more time for cross country skating groomer.

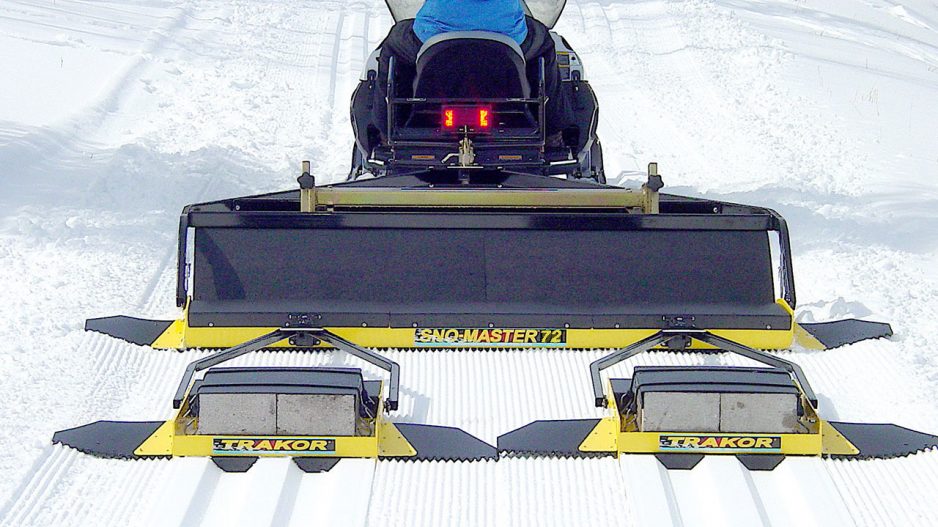

Virtually all Nordic SM72’s we sell are fitted with the optional SNO-RAZOR to provide a perfect, seamless corduroy for freestyle technique. Protected by shear bolts, the SNO-RAZOR swings rearward if it encounters a stump or rock.
A 12” Wing Set is included, the wings extend the grooming width, “feather” the overlap of a previous/adjacent pass and radius the groomed snow into the ungroomed banks. These wings are made from an extremely durable urethane, they bend up when encountering a tree or post and snap back down for more.
The breakaway coupler set includes a flat coupler to set normal compaction angle, plus 3” & 5” offset couplers to increase the compaction angle in fresh snow (no roller needed!). The replaceable stainless steel tracking runners keep the SM72 running straight, even with a TRAKOR offset to one side.
If you have road crossings or the need to move in and out of a maintenance building, you may be interested in the optional SM72 Wheel Kit.
Towing a TRAKOR or TRAKORS behind a Wheel Kit equipped SNO-MASTER 72 requires an optional Towbar. The standard, full-width model has three towing positions; the single sided Towbar can be mounted on either side.
0%
360 Degree View
Click and drag the image for a 360 degree view of a SNO-MASTER with SNO-RAZOR.
NORDIC Groomer Specifications
SNO-MASTER 48
SNO-MASTER 72
Grooming Width:
- without Wings
48" (1219 mm)
72" (1829 mm)
- with 12" Standard Wings
60" - 72" (1524 mm - 1829 mm)
84" - 96" (2133 mm - 2438 mm)
Length - Overall
68" (1727 mm)
79" (2007 mm)
Height - Overall
16" (406 mm)
16" (406 mm)
SNO-RAZOR Width
48" (1219 mm)
72" (1828 mm)
SNO-RAZOR Height Adjustment
Infinitely Adjustable
Infinitely Adjustable
SNO-RAZOR Angle Adjustment
15 - 30 degrees
15 - 30 degrees
Weight - empty w/12" Wings
102 lbs (46.4 kg)
168 lbs (76.4 kg)
Weight with SNO-RAZOR
155 lbs (70.4 kg)
234 lbs (106.4 kg)
Block Capacity (2" concrete blocks)
99 lbs (45 kg) 6
132 lbs (60 kg) 8
Total Maximum Weight
254 lbs (115.4 kg)
366 lbs (166.4 kg)
Chassis/Drawbar Material
Steel
Steel
SNO-RAZOR Material
Steel
Steel
Hardware
Stainless Steel
Stainless Steel
Recommended Towing Machines:
- Snowmobile
15" wide, long-track (136"+)
20" wide, long-track (154"+)
- ATV/UTV
Track Equipped
Track Equipped
Specifications subject to change without notice.
NORDIC Groomer Price List
NORDIC TRAIL GROOMERS
SNO-MASTER® 48
48" Ultra Low-Resistance Groomer with 12" Wing Set and Coupler Set
$
SNO-RAZOR for SM48
48" SNO-RAZOR, Subframe and Snow Deflectors
$
Wheel Kit for SM48
Complete Bolt-on Kit with 24" Handle
$
Towbar for SM48
Full Width, with 3 towing positions
$
Single Side Towbar
Mounts on either side
$
SNO-MASTER® 72
72" Ultra Low-Resistance Groomer with Subframe and Snow Deflectors, 12" Wing Set and Coupler Set
$
SNO-RAZOR for SM72
72" SNO-RAZOR
$
Wheel Kit for SM72
Complete Bolt-on Kit with 30" Handle
$
Towbar for SM72
Full Width, two towing positions, 44" centers
$
Single Side Towbar
Mounts on either side
$
All prices in U.S. Dollars. Prices subject to change without notice. Michigan Residents add 6% Sales Tax.
